12 Ton Hydraulic Truck Crane With 4 Boom Sections And Fully Extended Outrigger Span

Name: 12 Ton Hydraulic Truck Crane With 4 Boom Sections And Fully Extended Outrigger Span
Brand: LIYUE
Price: 21 USD

Wholesale 12 Ton Hydraulic Truck Crane With 4 Boom Sections And Fully Extended Outrigger Span from china suppliers

Brand Name : LIYUE

Model Number : SQ12A4 SQ12A5

Certification : CE

Place of Origin : Henan, China

MOQ : 1

Price : $21,400.00/units 1-2 units

Supply Ability : 3000 Unit/Units per Year

Packaging Details : Nude packing

Feature : TRUCK CRANE

Showroom Location : Indonesia

Condition : New

Application : Construction

Rated Loading Capacity : 12 ton

Rated Lifting Moment : 5.15-15 T.M

Max. Lifting Height : 17.2 m

Span : 2270-5270 mm

Warranty : 1 Year

Hydraulic Cylinder Brand : MOOG

Hydraulic Pump Brand : Changjiang

Hydraulic Valve Brand : Liyuan

Engine Brand : YUNNEI

UNIQUE SELLING POINT : High operating efficiency

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Bearing, Pump

Weight (KG) : 4316 kg

Product name : Truck Mounted Crane

Crane type : Truck Crane Mobile Crane Hydraulic Crane

Hydraulic parts : Famous Brand Hydraulic Parts

Capacity : 12 Ton Truck Crane

Boom type : Hydraulic Straight Arm

Color : Customer Requirements

Usage : Construction Lifting

Rotation Angle : 360 Degree

Installation space : 1300 mm

High quality : Mobile Crane Lifting Capacity

Contact Now

12ton Construction Telescopic Boom Truck Mounted Crane

NOTE: The price is for crane part only.

12 Ton Hydraulic Truck Crane With 4 Boom Sections And Fully Extended Outrigger Span

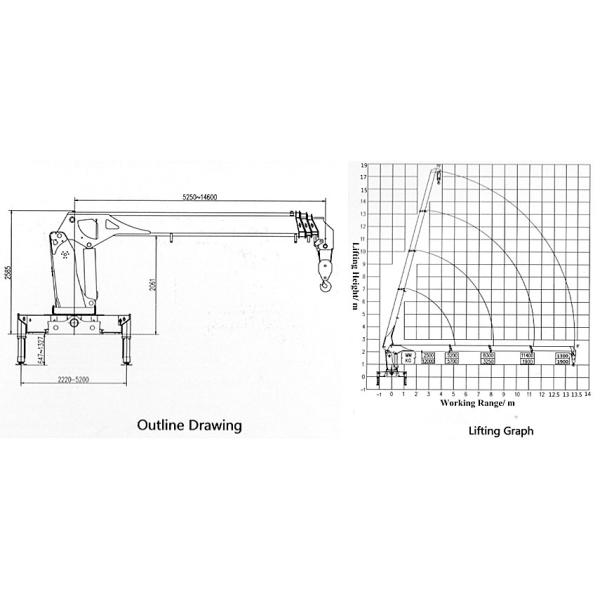

SPECIFICATIONS FOR 12 TON CRANE TRUCK
Crane Dimension	Model	-	SQ 12T
	Max. Lifting Capacity	kg	12000
	Max. Lifting Height	m	17.2
	Working Radius/ Span	m	2.5- 13.5
	Rotation Angle	º	360
	Boom Elevation	º	3-75
	Boom Sections	Pcs	4
	Outrigger Span (Fully Extended)	mm	2270-5270
	Crane Weight	kg	4316
	Hydraulic Tank Capacity	L	160
	Max. Flow Rate of Hydraulic Oil System	L/min	63
	Hydraulic System Rated Pressure	Mpa	26
	Installation Space	mm	1300
Working Parameter	The Basic Boom Length	m	5.15-15
	Max. Lifting Torque	T.m	30
	Max. Slewing Speed	r/ min	2

Product Show
